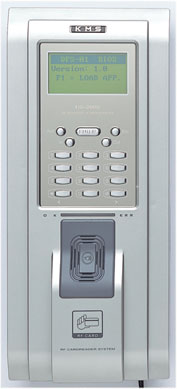

  > 지문인식기 및 근접식리더기 > KMS-RF5000



특징
- CPU ATmega128 8bit RISC[S3C2410 (ARM9]
- ROM (Flash) 128Kbytes[1Mbytes]
- Working RAM 28Kbytes[8Mbytes SDRAM]
- Storage RAM
128Kbytes[1Mbytes (1000 user) / 2Mbytes (2000) / 4Mbytes (4000)]
- LCD
Graphic 128x64 Dots, Back Light
- Key Board
10Numeric Key, < , > , Fn1,Esc, In, Out, ENTER
- Communication
COM1: Ethernet / RS-422 / RS-232
COM2: RS232C
Speed: Up to 115200bps
Surge Protected
- Input Sensor Port
2Ports
- Output Port
2Ports
- Input Power
12VDC (Main), 12VDC(I/O)
- Operating Temp 0°C ~ +70°C
- Humidity 10% ~ 90% RH
- Dimension

280mm(L) x 120mm(W) x 50mm(H)
- RF

Frequency: 13.56MHz
Interface : ISO/IEC 14443
Distance: Up to 100mm
